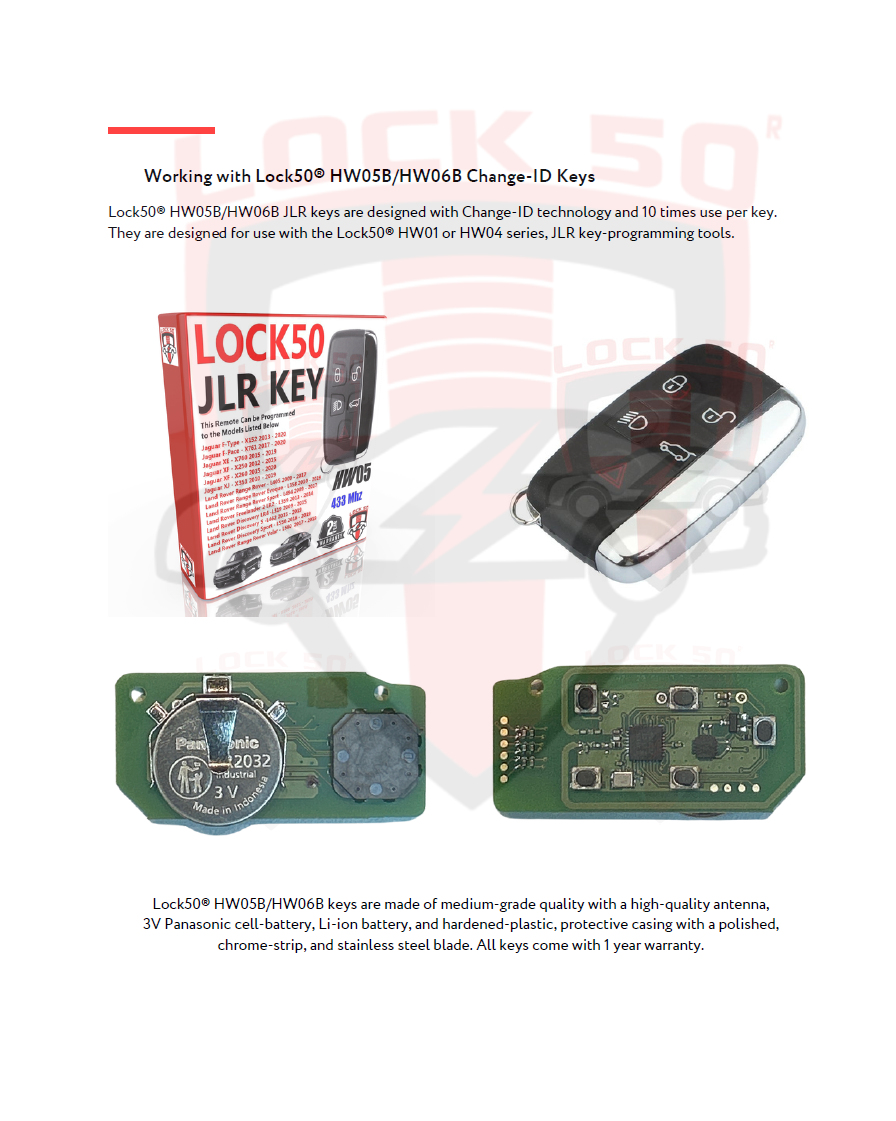

Lock50 Change ID HW06 JLR Key 315 Mhz
Each Key Can be used 10 Times To Copy
After Copy is Done you can Give the Client the Key to Use.
Use To Make Key Copy using Lock50 Tools via these ways and will count as 1 Use.
- RFA Files
- Key to Key Copy when Unlocked Key
- OBD Key Copy when RFA is Locked
Note these are Aftermarket Keys
To Use Requires
- HW01 Lock50 HW01 JLR Key Tool or HW04 OBD Tool
- Write data to Lock50 Range of JLR HW05 Change Id Keys.
Option 1 Via Direct Copy Key to KEY 2010 - 2024
Simply Place Key to copy to Lock50 HW01 and Read Key Info
Press Copy Key and Place a HW05 to HW10 Lock50 JLR Key on Reader
Job done in Seconds and Make a Used/Damaged or non working or Low Grade JLR Key on to Lock50 JLR High Grade OEM keys
Option 2 Via MCU Dump for KVM Keyless Vehicle Module 2010 - 2024
- MC9S12XET256
- MC9S12XEQ384
Open a Dump file for the MCU you have read and u will see the Current Key Position Data
Select the key position you wish to emulate and press COPY for
Ready to start RKE Remote Keyless Functions with HW05
The HW05 can be programmed by using D-Flash and Eeprom.
Option 3 Via OBD Key Copy for KVM Keyless Vehicle Module 2010 - 2024
For this you need the HW04-C OBD Tool Package
Lock50 Key Jaguar HW05 to HW10 Supported Years:
- Jaguar F-Type - X152 2013 - 2024
- Jaguar F-Pace - X761 2017 - 2020
- Jaguar XE - X760 2015 - 2019
- Jaguar XF - X250 2012 - 2015
- Jaguar XF - X260 2015 - 2020
- Jaguar XJ - X351 2010* - 2019
Lock50 Key Land Rover HW05 to HW10 Supported Years:
- Land Rover Range Rover - L405 2009 - 2017
- Land Rover Range Rover Evoque - L358 2010 - 2019
- Land Rover Range Rover Sport - L494 2009 - 2017
- Land Rover Freelander 2 LR2 - L359 2013 - 2014
- Land Rover Discovery LR4 -L319 2009 - 2015
- Land Rover Discovery 5 -L462 2015 - 2019
- Land Rover Discovery Sport - L550 2016 - 2019
- Land Rover Range Rover Velar - L560 2017 - 2019
Remote Frequency + Keyless function:
- 433 Mhz
- Smart / Proximity / Keyless Entry Supported:
KVM Security Type Supported:
- AH32
- BJ32
- DPLA
- FK72
- HPLA
MCU in KVM:
- MC9S12XET256
- MC9S12XEQ384
Supported Key Transponders for emulation :
- PCF7953P
Emergency Start Proximity/Handsfree Operation
- Yes Emergency Start & Proximity/Handsfree Operation Supported XEP100 RFA Keys with 1 Chrome Strip on 1 side.
No of Plugs on KVM Supported:
- 1 Plug
- 2 Plug
- 3 Plug
Lock50 HW01 & HW04 Tools new update to Emulate keys from BCM Data demo
Original Key:
Non Orignal
KVM Key less Vehicle Module
Supported Software for KVM/RFA Replacement Programming:
- SDD System Driven diagnostics
- Topix Cloud Diagnostic Agent
- Pathfinder
- Lock50 HW04
Immobiliser systems
JLR Key Options PCB:
Non Original High Grade PCB 24 Month Warranty
Lock50 HW01 & HW04 JLR Key tool:
- SW01 - FREE with Lock50 HW01 & HW04 Read JLR Key PCF7953 Part Frequency Position Locked Status info
- SW 03 - FREE with Lock50 HW01 & HW04 Jaguar Land Rover Precoding Dealer Key Dump Tool FK72 HPLA DPLA for MCU MC9S12XEP100
- SW09 - FREE with Lock50 HW01 & HW04 Module Copy Key via MCU Dumps for KVM 2010 to 2021
- SW10 - FREE with Lock50 HW01 & HW04 Module Copy Unlocked JLR PCF7953 Key to Key without OBD
- SW 11 - FREE with Lock50 HW01 & HW04 JLR 2010 to 2020 Key Unlocking / Renewing Without opening Keys PCF7953
- SW15 - FREE with Lock50 HW01 & HW04 JLR Defender DH12 ALM ECU Module Spare or All Lost Keys via Copy to Lock50 Keys via MCU Dump
Lock50 HW04 OBD Tool Functions:
- SW27 HW04-B & C OBD Tool JLR 2017 to 2024+ New RFA Programming (UnLocked BCM Supported)
- SW34 HW04-C OBD Tool 2010 to 2020 PCF7953 Key Duplicator When RFA is Locked
