Lock50 HW25 JLR Land Rover OEM PEPSFOB (with UWB) NCF29A4V Fixed ID 433 MHz 2017 to 2026

Lock50 HW25 (433 MHz) — 433 MHz

OEM Land Rover PEPSFOB (with UWB) • NCF29A4V • Fixed ID • RFA vehicles 2017 to 2026 • not for KVM

🔑 Fixed-ID key — programmed as a new key, not copiedPEPSFOB (with UWB): door-handle button or key button to open • keyless start inside

Key type	OEM Land Rover PEPSFOB (with UWB) — fixed ID, programmed as a new key
Transponder	NCF29A4V (NCF29A4VHN marking), 433 MHz remote
Works on	RFA vehicles 2017 to 2026 — RFA families JPLA / K8D2 / J9C3 / M9R3, 1-plug, 2-plug and 3-plug RFA
What the car does	door-handle keyless entry, key button and keyless start — emergency start and remote as normal
Programming	Over OBD with HW04 (RFA + BCM), or in the RFA EEPROM dump on the bench; new-RFA programming over DoIP / Topix Cloud Diagnostic Agent or HW04
Control module	RFA (Remote Function Actuator)

Before programming, check one thing on the car:

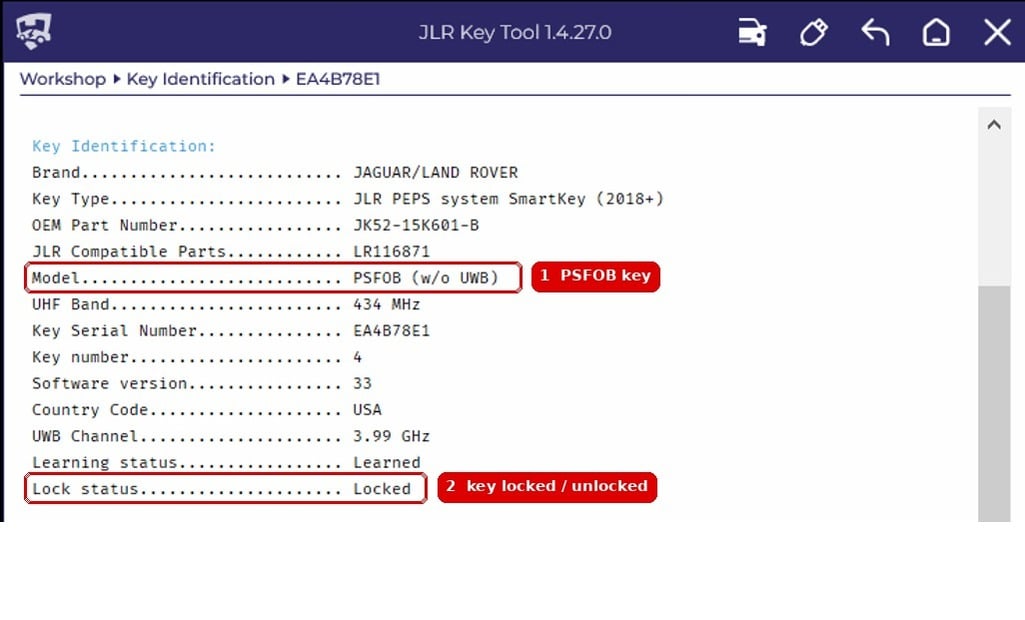

1. Is the RFA locked or unlocked? That is the only thing that decides the route — this key needs no UWB-off step and no UWB software function; it learns as the car left the factory and gives door-handle keyless entry, key button and keyless start. Read the car over OBD with SW20 and check the RFA page. SW02 reads the key only: it tells you about that key (part, frequency, its own lock flag), not the car.

Then add the key with Lock50 tools:

Car state	How to add this key	Where
RFA unlocked (any car 2017–2026)	Learn this key directly over OBD with HW04 — any package A+ to C+. Nothing to change in the car first.	OBD
RFA locked, EVA2 2021+	Two ways out: unlock the RFA with SW40 then learn this key (after the unlock you can also erase the old keys and program new keys into the RFA and BCM, no parts swapped); or fit a new RFA and adapt it (package B or C) — works even with a locked BCM. Unlocking the RFA (EVA2 only): with no keys made you can unlock over CAN; with 2 working keys, over OBD. Exception — Phase 4 ‘telematics protection plus’ cars: only unlock with 2 working keys the car can see, and they must be real OEM UWB keys like this one — with no keys, fit a new RFA.	OBD
RFA locked, EVA1 (2017–2020)	This fixed-ID key cannot be added to a locked RFA. To fit this key: replace the RFA with a new unlocked one, program it as new over OBD with HW04 (SW27 unlocked BCM / SW28 locked BCM, SW38 if the software is too high), then add this key to the new RFA (package B or C; works even with a locked BCM). Alternative without changing the RFA: copy the existing key onto a HW13 (433 MHz) / HW14 (315 MHz) change-ID key with SW36 + HW03-C — the copy gives door-handle keyless, key button and keyless start; only walk-away lock / unlock is missing.	Replace RFA
RFA dump on the bench (HW04)	With the HW04 tool (SW01–SW15 functions; HW01 also runs them). RFA unlocked: read the RFA SPC560B MCU DFLASH dump, add this key with SW13 (new key) or SW14 (used / locked key) and write it back. RFA locked: unlock the dump first, then add this key. Remote and start work — no emergency start this way.	Bench
Copy an existing key onto this key	Not possible — this is a fixed-ID key, nothing can be copied onto it (no SW35, SW36 or key-to-key). For copy / duplicate jobs use the HW13 (433 MHz) or HW14 (315 MHz) change-ID keys.	Not possible

Key facts

• No emulation work: the RFA emulation functions (SW04 / SW05 / SW07 / SW06) and BCM emulation (SW08) need a change-ID key, so they do not apply.
• RFA vehicles only (2017 to 2026); it will never work on KVM systems (2010–2014) — for those use the HW05 (433 MHz) to HW10 (315 MHz) range of keys.

JLR key technology — the 3 ways to open & close the doors

Every JLR key in this range gives you push-button keyless start inside the car — that is the same on all of them. The only difference is how you open and close the doors. There are 3 ways:

A copy key (HW13 (433 MHz) / HW14 (315 MHz)) opens and starts the car like the key it copies on any 2017–2026 system, except walk-away lock / unlock — that only works with the OEM UWB keys HW27 (433 MHz) / HW28 (315 MHz), never with a copy key.

Full JLR key range — which key, which car, when

Tap any key below to open its page.

Note: every key above gives the same push-button keyless start inside the car — only the way you open / close the doors changes.

All models covered 2017+ with the same type of key shape as pictured — Land Rover Defender L663 (2020+), Discovery 5 L462 (2017+), Discovery Sport L550 (2018+), Range Rover Sport L494 (2018+), Range Rover Velar L560 (2017+), Range Rover Evoque L551 (2019+), Range Rover L405 (2018+) and Jaguar XE X750 (2020+).

Lock50 software functions for this key

Every function below runs on the HW04 tool (the bench dump functions also run on HW01). Each one is listed once — tap it to open its own page. For the full step-by-step routes, use the “How to add this key” table near the top.

Advice for clients

• The OEM Land Rover PEPSFOB (with UWB) key for full keyless on any RFA vehicle 2017 to 2026, UWB or non-UWB car, learned as the dealer does — only walk-away lock / unlock needs the HW27 (433 MHz) / HW28 (315 MHz) key instead.

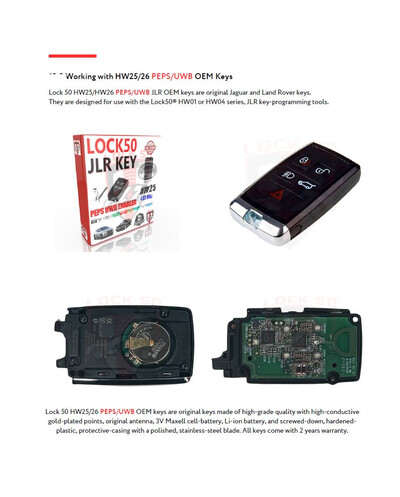

• Original OEM grade case and OEM original PCB, 24-month warranty. Supplied with a blank (uncut) emergency blade.
• All of these run on the HW04 tool.

All JLR RFA modules — which have UWB and which do not

The number in each RFA title (for example K8D2-19H440-AC) is the assembly part number. It is printed on the label on the outside of the RFA box, and it is the same number SW20 reads from the RFA over OBD. Read it and you know straight away what the RFA can do:

• Assembly part number ending -AB or -AC (HW50 / HW51) = PSFOB (without UWB) RFA. There is no UWB hardware inside it at all.
• Every other assembly part number (-AE, -BB, -BC, -BD, -BE, -BF, -CE, -DE, -DF) = PEPSFOB (with UWB) RFA. Any of these PEPSFOB (with UWB) RFAs can be fitted to any car that needs a UWB-type RFA (2017–2026) — match the plug count and family in the table below and program it as new with the HW04 tool. They also learn to any car that came with a PSFOB (without UWB) RFA (same plug count / family), so a PEPSFOB (with UWB) RFA covers every car — these are the RFAs to stock.
• PSFOB (without UWB) RFA: any key learns to it (PSFOB (without UWB) keys HW15–HW20, or PEPSFOB (with UWB) HW21–HW28), but the car is always key button + keyless start — door-handle keyless is impossible, there is no UWB hardware inside.
• PEPSFOB (with UWB) RFA: PEPSFOB (with UWB) keys HW21–HW28 give door-handle keyless (walk-away only with OEM HW27 (433 MHz) / HW28 (315 MHz) on 2022+ cars, never with HW21–HW26). OEM PSFOB (without UWB) keys HW15–HW20 learn too, but key-button only (UWB off in the BCM CCF first). Copy keys HW13 (433 MHz) / HW14 (315 MHz) work on either RFA type.

RFA	Assembly part number	Other part numbers	Plugs	Family	Cars	UWB
HW50	K8D2-19H440-AB	J9C2796	1-plug	K8D2 — Land Rover	2017–2023	PSFOB (without UWB)
HW51	K8D2-19H440-AC Latest -AC revision of the -AB.	LR117928 / T2H38587	1-plug	K8D2 — Land Rover	2017–2025	PSFOB (without UWB)
HW41	JPLA-19H440-DE	LR099141 / T4K6115	3-plug	JPLA — Land Rover	2017–2023	PEPSFOB (with UWB)
HW42	JPLA-19H440-BE	—	2-plug	JPLA — Land Rover	2017–2022	PEPSFOB (with UWB)
HW43	JPLA-19H440-CE	LR099140 (USA)	3-plug	JPLA — Land Rover, USA market	2017–2022	PEPSFOB (with UWB)
HW44	JPLA-19H440-AE	LR099138 (USA)	2-plug	JPLA — Land Rover, USA market	2017–2023	PEPSFOB (with UWB)
HW45	J9C3-19H440-DF	J9C2798	3-plug	J9C3 — Jaguar	2017–2023	PEPSFOB (with UWB)
HW46	J9C3-19H440-BF	J9C2798	2-plug	J9C3 — Jaguar	2017–2023	PEPSFOB (with UWB)
HW47	K8D2-19H440-BB Superseded by -BC — the -BC is what ships.	LR117932 / T2H38589	2-plug	K8D2 — Land Rover	2019–2023	PEPSFOB (with UWB)
HW48	K8D2-19H440-BC	LR117932 / T2H38589	2-plug	K8D2 — Land Rover	2019–2023	PEPSFOB (with UWB)
HW49	M9R3-19H440-BD 2023+ builds also support walk-away lock / unlock with the OEM HW27 (433 MHz) / HW28 (315 MHz) keys.	—	1-plug	M9R3 — Land Rover / Jaguar	2022–2025	PEPSFOB (with UWB)
HW52	M9R3-19H440-BE Latest -BE revision of the -BD.	—	1-plug	M9R3 — Land Rover / Jaguar	2022–2025	PEPSFOB (with UWB)

Green rows = PSFOB (without UWB) RFA. Amber rows = PEPSFOB (with UWB) RFA. Tap the photo or code to open each RFA page. Every RFA above is programmed to the car with the HW04 tool.
