TOPIx Diagnostic Device Agent Topix cloud diagnostics login Topix cloud diagnostics 2017+ to 24+

From Pathfinder to TOPIx Cloud: What This

Note  we sell only ready setup on laptop purchased same time from us.

To have setup on your own laptop we don't offer that  option.

If you own or work on Jaguar Land Rover vehicles, having the right diagnostic tool is crucial.

With the recent transition from JLR Pathfinder to TOPIx Cloud, many technicians are wondering which tool is right for their needs. In this comprehensive guide from Lock50, we’ll take a closer look at these two JLR diagnostic tools, highlighting their advantages and disadvantages to help you make an informed decision. While both tools have their benefits, we believe that JLR Pathfinder is the superior option, and we’ll explain why in this guide. Additionally, we’ll introduce Lock50 JLR Diagnostic Bundle, which includes JLR SDD, Pathfinder, and CCF Editor for programming and coding .

What is JLR Pathfinder?

JLR Pathfinder is a software program developed by Jaguar Land Rover to diagnose and program vehicles manufactured by the company. The tool is a dealer-level diagnostic system that allows users to diagnose faults, program new keys, and perform other advanced functions on JLR vehicles.

One of the major benefits of JLR Pathfinder is that it provides access to a wider range of diagnostic and programming functions than many other tools on the market. The software is regularly updated with the latest diagnostic information, so users can be confident that they have access to the most accurate and up-to-date data. Additionally, the software is user-friendly, with a clear interface that makes it easy to navigate and use.

However  the  Pathfinder Software Development has been stopped now and  The Topix Agent Diagnostic Tool is Replacing the  main functions for BCM  RFA and ABS and other High Security Parts  for Vehicles from 2021  to  23+.

Body Control Module Replacement and  Remote functions actuator replacements And lost keys cannot be  done in Pathfinder for all models .  Also  Wiring Diagrams and Topix Bulletins are not available in the Cloud Tools we offer.

TOPIx Cloud is a newer JLR diagnostic tool that has been developed as a replacement for JLR Pathfinder. The tool is cloud-based, meaning that users can access it from anywhere with an internet connection, rather than needing to install software on their local machine. The software offers many of the same functions as JLR Pathfinder, including diagnostic functions, programming, and key coding.

One of the main advantages of TOPIx Cloud is that it is regularly updated with the latest diagnostic information, so users can be confident that they have access to the most up-to-date data. Additionally, the cloud-based nature of the tool means that users do not need to worry about software updates or installing the software on their local machine.

However, there are also some potential downsides to using TOPIx Cloud. One major concern is the reliance on an internet connection – if the connection is slow or drops out, users may experience delays or be unable to access the software altogether. Additionally, some users may prefer the familiarity of a local software installation, rather than having to navigate a web-based interface.

Overall, while TOPIx Cloud is a promising new tool, there are some potential drawbacks that users should be aware of before making a decision. In the next section, we’ll compare JLR Pathfinder and TOPIx Cloud in more detail, to help you decide which tool is right for your needs.

JLR Pathfinder vs. TOPIx Cloud: Which is Better?

When it comes to choosing between JLR Pathfinder and TOPIx Cloud, there are several factors to consider. Let’s take a closer look at each tool and compare them based on key features:

Functionality

Both JLR Pathfinder and TOPIx Cloud offer similar functionality, including diagnostics, programming, and key coding. However, some users may prefer the interface and workflow of one tool over the other. For example, JLR Pathfinder offers a more traditional software interface, with menus and toolbars, while TOPIx Cloud has a more modern web-based interface.

Accessibility

One key advantage of TOPIx Cloud is its cloud-based nature, which allows users to access the software from anywhere with an internet connection. This can be particularly useful for technicians who need to work remotely or travel frequently. On the other hand, JLR Pathfinder requires a local software installation, which may be more familiar to some users.

Updates and Support

TOPIx Cloud is regularly updated with the latest diagnostic information, so users can be confident that they have access to the most up-to-date data. Additionally, support is provided directly by JLR, which can be reassuring for users who want to ensure they have reliable technical support. However, users of JLR Pathfinder must manually update their software to access the latest information, and support is provided by third-party vendors rather than directly by JLR.

Cost

The cost of JLR Pathfinder and TOPIx Cloud can vary widely depending on the user’s needs. JLR Pathfinder requires a one-time purchase fee, but users must pay for updates and support separately. On the other hand, TOPIx Cloud requires a monthly or yearly subscription fee, which can be more expensive over time but may be more manageable for users who prefer to spread out their expenses.

The Benefits of JLR Pathfinder

As mentioned earlier, JLR Pathfinder has been the preferred diagnostic software for Jaguar Land Rover vehicles for many years. Here are some of the benefits of using JLR Pathfinder:

1. Compatibility: JLR Pathfinder is compatible with all Jaguar Land Rover models, including the latest ones. So, if you have a newer vehicle, JLR Pathfinder will still work without any issues.
2. Detailed diagnostics: JLR Pathfinder provides detailed diagnostics for all vehicle systems, including engine, transmission, ABS, airbag, and more. This allows for accurate diagnosis and faster repairs.
3. Programming and coding: JLR Pathfinder includes a CCF editor for programming and coding. This means that you can customize the settings of your vehicle to suit your needs, without having to rely on a dealership.
4. Offline capabilities: JLR Pathfinder can be used offline, which means that you don’t need an internet connection to use it. This is especially useful if you’re in a remote area or don’t have access to Wi-Fi.
5. No subscription fees: Unlike TOPIx Cloud, JLR Pathfinder does not require any subscription fees. Once you purchase the software,

These are just a few of the benefits of using JLR Pathfinder. Now, let’s take a look at the downsides of the new TOPIx Cloud software.

The Downsides of TOPIx Cloud

While TOPIx Cloud offers some new features, there are also some downsides to this new software:

1. Subscription-based: TOPIx Cloud requires a monthly or yearly subscription fee, which can be costly in the long run. If you’re a small garage or mechanic, this may not be a feasible option for you.
2. Limited access: TOPIx Cloud requires an internet connection to work, which means that if you’re in a remote area or have a poor internet connection, you may not be able to use it. Additionally, some features of TOPIx Cloud may not be available in certain regions.
3. Compatibility issues: While TOPIx Cloud is designed to work with newer vehicles, there have been some reports of compatibility issues with certain models. This can be frustrating and time-consuming for mechanics who need to diagnose and repair vehicles quickly.
4. Learning curve: TOPIx Cloud has a steeper learning curve compared to JLR Pathfinder. This means that it may take some time to get used to the new interface and features, which can be a challenge for those who are used to using JLR Pathfinder.

Overall, while TOPIx Cloud has some new features, it may not be the best option for everyone. If you’re a small garage or mechanic on a budget, JLR Pathfinder may be a more cost-effective option. Additionally, if you’re in a remote area or have a poor internet connection, JLR Pathfinder’s offline capabilities make it a better choice.

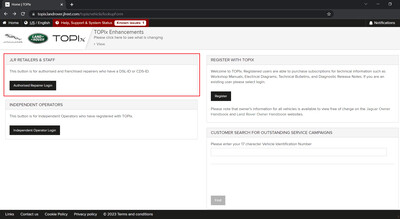

Their 2 Types of Accounts   for JLR and i will highlight the differences

1   Independents

Independent Accounts don't support RFA or BCM  Replacements' for 2020+ Cars  but look for Lock50 HW04  for fast key programming.

2   Authorised

This is like using the Factory  Login and you have Full Permission to do all modules online in the Topix Cloud till 23+ All lost Supported

TOPIx WORKFLOW – Maintenance, PDI & OSH, Fault and Breakdown

The new TOPIx ‘Workflow’ functionality can be used to perform Pre-Delivery Inspections (PDI), Vehicle Service, or Fault & Breakdown investigations.

Workflows performed though TOPIx can be seen In the ACTIVITY HISTORY. In addition a workflow that has previously been started can be resumed from the HISTORY.

• The Pre-Delivery Inspection workflow provides a checklist, workshop instructions, the PDI app, ending with the creation of the OSH record. This is offered as a unified workflow, without having to navigate within, or outside of TOPIx.
• Service workflow guides the technician through a checklist, service interval reset, and into OSH to create an end to end service record.
• The Fault & Breakdown workflow guides the technician through symptoms and component selection, offering testing scenarios, and suggested repairs.

Workflow efficiencies include prepopulated Vehicle and VIN. When used with connected vehicles through TOPIx Diagnostics, workflow provides the tools a technician needs in one place, such as running an Automatic Network Test, to include enhanced vehicle data such as DTC’s, and software versions.

To find workflow on TOPIx enter a VIN, or select a vehicle from the vehicle park, and select either Maintenance, PDI & OSH or Fault and Breakdown from the OPTION SELECTION.

Key Features

• Trigger a new workflow - Maintenance, PDI & OSH, Fault and Breakdown
• View TOPIx workflow history
• Resume an incomplete workflow
• Link to TOPIx Cloud Diagnostics
• Displays data from a connected vehicle
• Create events record of activities against a VIN

Electrical Wiring Diagrams (iEWD)

The Electrical Reference Library (ERL) is being integrated into the Interactive Electrical Wiring Diagram (iEWD) in TOPIx. Without closing the iEWD you can search in the ERL tab to quickly find information for your diagnosis or repair.

The search has been improved to filter the ERL information by text or reference.

All vehicles supported by iEWDs will no longer have a separate Electrical Reference Library (ERL) publication.

The document has a View By filter of connectors for Ground, Inline, Module or Component.

If a connector is not serviceable but overlays are available TOPIx displays a Green flag ‘Overlay Available’ and displays a list of Overlay recommendations in a table below.

Key Features

• Display against a connector if a lower-level assembly (LLA) Overlay is available
• Combined iEWD/ERL – one location for electrical information
• Text and reference search function integrated within the ERL tab
• Filtering of connectors by Ground, Inline, Module or Component

TOPIx Vehicle Diagnostics

TOPIx Cloud Diagnostics can directly connect to 17MY vehicles onwards to run Vehicle Diagnostics. TOPIx Diagnostic Device Agent (DDA) must be installed for the diagnostics to run.

The Diagnostic Device Agent synchronises with TOPIx to display data from the connected vehicle, and features and functions of Jaguar Land Rover approved diagnostic tools.

Login to TOPIx through the DDA, and connect a vehicle through a Vehicle Communication Interface (VCI).

The ‘VEHICLE DATA panel provides a summary of the vehicle’s module status; Green no DTC, Amber DTC stored, Red NO RESPONSE. The occurrence of DTC’s are displayed in the ‘Fault Timeline’ referencing a date and time for each event.

Vehicle Applications - toolbox displays generic vehicle applications such as a Network Integrity Test, Pre-Delivery Inspection and Service Message Reset.

Module Applications - shows applications available for a specific module (known as ECU Diagnostics in Pathfinder).

History - the VIN ‘History’ toolbox displays previous activities against the vehicle, shows the history of what has been ran on a vehicle and its outcome when connected to TOPIx Cloud Diagnostics on one or more sessions.

DTC’s - The ‘DTC’ toolbox displays DTC codes, descriptions, timestamps and odometer value.

Key Features

• New History Tab in TOPIx
• Print ‘All DTC’ as a report
• Not necessary to filter through Diagnostic Trouble Codes (DTC)

Installing TOPIx Cloud Diagnostics

TOPIx Cloud Diagnostics can directly connect to 17MY vehicles onwards. As an integrated diagnostic cloud-based tool TOPIx Diagnostics is always up-to-date, removing the need for constant software installations or updates.

To use TOPIx Cloud Diagnostics the Technician needs to perform a one-time installation of the TOPIx Diagnostic Device Agent (DDA) on their laptop. The download link is accessed from the TOPIx Links page.

Login to TOPIx through the DDA, and connect a vehicle through a Vehicle Communication Interface (VCI). The Network Integrity Test will automatically start. Select the Diagnostics tab.

If not connected to a vehicle diagnostic tests can still be run by enter a vin on the home page, or select a vehicle from the vehicle park. Select Fault and Breakdown, and the Diagnostics Tab.

Key Features

• Download the Diagnostic Device Agent (DDA) from the TOPIx Links page
• Toolbox, login /navigate to toolbox, connect vehicle
• Over time these will consolidate all existing diagnostic routes, reducing confusion, unnecessary repairs and wasted time

SOTA Enhancements for L663

The new, technologically advanced Defender comes with Electric Vehicle Architecture 2 (EVA2). This platform enables more vehicle modules to be updated by wireless software updates. Our scope for future updates will be broadened, ensuring our vehicles are always using the latest software.

The latest TOPIx update to support SOTA for EVA2 will enable the following:

• All SOTA updates will now be displayed on one simple screen
• Updates can easily be triggered by a technician at the click of a button
• Live, real-time progress views of software updates
• Full history view of all previous SOTA updates on a vehicle

Key benefits for Customers

• Convenience - Customers can receive important updates on-the-go without a Retailer visit
• Simplicity - Updates are received through the vehicle's touchscreen with a clear and simple process for customers
• Excitement - Customers can receive new features for their vehicles directly over-the-air
• Choice - Customers can schedule the update to be performed at a time that suits them

Key benefits for Retailers

• Always up-to-date – More vehicle modules can now receive software updates wirelessly, ensuring customer vehicles remain at peak performance
• Capacity – Reduced capacity impact on Retailers due to proactive updates

BMIS (Battery Management Information System)

With the addition of BMIS (Battery Management Information System), TOPIx now displays historical battery test data, with new records added daily.

This data can be found in TOPIx under the ‘Battery Tests’ tab when viewing all vehicle details, and within this section you can find detailed information for each test completed for the specific vehicle loaded.

BMIS provides a centralised collection of battery test data and is designed to enhance battery management and improvements in processes and programs.

Key Features

• Battery test data can now be accessed from within TOPIx
• Displays historical battery diagnostic information
• New test data added daily

Software Over The Air (SOTA)

The addition of Software Over The Air (SOTA) completely revolutionises the way software updates are applied to vehicles. SOTA not only gives the technicians the ability to enable software updates on the vehicle remotely but also enables technicians to apply software updates, fast and effectively without the need of a physical connection.

SOTA acts as the delivery mechanism for software updates to vehicles. Its key benefits are speed and convenience. Historically it can take a significant period of time to perform a large software update but this is significantly reduced with the introduction of SOTA.

There are many software modules that shall be using SOTA as its default delivery mechanism in the future; however, this phase sees the introduction of the important NGI (Next Generation Infotainment) module and TCU (Telematics Control Unit) module. This also means from now onwards, vehicles will leave the factory SOTA ready for the owner's acceptance.

Key Features

• Significantly reduces software update procedure times
• Gives the technicians the ability to enable SOTA on the vehicle
• Enables the technician to apply SOTA updates
• NGI (Next Generation Infotainment) Module goes live
• TCU (Telematics Control Unit) module goes live

Curated Repairs

ARC Phase 4 sees the introduction of Curated Repairs. This powerful tool enables technicians to see the duration of a procedure and delivers a list of special tools and required parts to complete the task-in-hand.

The duration section details how long a procedure will take to perform in hours and minutes, giving technicians a greater overview. The required special tools/parts sections list all of the special tools/parts that are required to complete the procedure as well as their part numbers. It also provides the technicians with a preview of each special tool/part quickly and efficiently. The required parts section also details the quantity.

Curated repairs introduce the ability to print off the list of special tools/parts easily.

Key Features

• Provides a list of the required special tools including name and part number
• Provides a list of the required parts including name, quantity and part number
• The list of special tools/parts can be easily printed
• Special tools/parts can easily be previewed

Intelligent search

The focus of ARC Phase 3 is the search process and incorporating methods of refining the search, known as ‘intelligent searching’. This means that the search results you see are tailored specifically to your vehicle, market and the type of user that you are, as well as what actions you have chosen to perform on the vehicle.

So if there are two users accessing the same vehicle, for example, a technician that usually performs fault diagnosis, and an administrative clerk that often books in a vehicle and prints out a service checksheet, the two users are likely to get completely different search results as TOPIx will take all the contextual information into account to provide more intelligent search results, allowing faster access to the data a user is more likely to need.

Key Features

• Truly intelligent search results based on how you generally use TOPIx to view content
• Less clutter as content not applicable to your activity is removed
• Contextually specific content for your vehicle, market and user role is promoted
