Lock50 JLR OBD HW04-B Tool Kit for Locked Keyless Module and you can Replace RFA Module only
- View all variations as list
| CODE | HW04-B OBD Tool Package Deals | Price | ||
|---|---|---|---|---|
|
Lock50 JLR HW04-B Worldwide (2010 to 2024+)
|
[Sign in to view price] |
Please sign in so that we can notify you about a reply
HW04-B

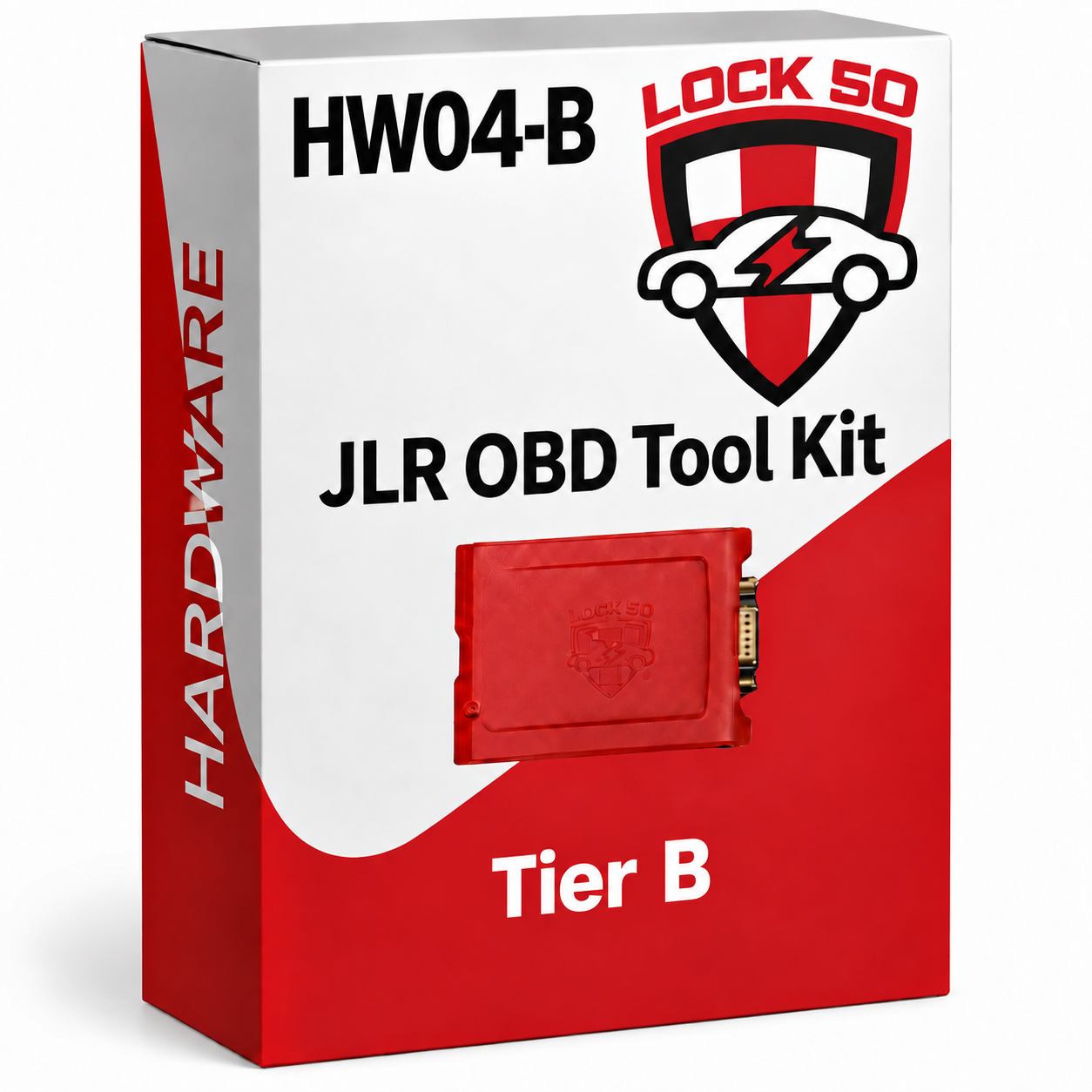

Lock50 JLR OBD HW04-B Tool Kit — Locked Keyless Module (Replace RFA Only)
Flashing over DOIP, CCF editor and locked-module RFA.
£5,000ex-VAT· £6,000 inc. 20% UK VAT
First 12 months free, then from £750/yr (24 mo £1,300 · lifetime £2,250).
Best for: Full workshops covering EVA2 / 2021+ DOIP vehicles.
What this version does
✓Everything in HW04-A (all standard key & diagnostic functions)
✓CCF editor + as-built flashing (SW24)
✓SDD module VIN programming — new/used parts (SW21)
✓Pathfinder module VIN programming 2017–2021 (SW22)
✓New RFA programming — unlocked BCM (SW27)
✓DOIP programming & diagnostics via ENET, 2022+ (SW37)
✓Downgrade RFA module software via OBD (SW38)
✓Replace RFA on a LOCKED keyless module (SW28) — swap the RFA alone, no BCM change, no Service Mode; 2017–2024+ incl. locked L8B2 / R8E2 / M8E2
Copying a key is optional — you never have to pay a token for it.
Paying to copy a key (SW34) is optional — it only saves time. Instead you can swap in a new RFA module and adapt it using the New RFA programming already included in this package (SW27 unlocked BCM · SW28 locked BCM) at no per-job cost. Version B also works over DOIP and CAN cables. Note: on a locked RFA/KVM the token is still optional — SW28 lets you replace the module instead.
Paying to copy a key (SW34) is optional — it only saves time. Instead you can swap in a new RFA module and adapt it using the New RFA programming already included in this package (SW27 unlocked BCM · SW28 locked BCM) at no per-job cost. Version B also works over DOIP and CAN cables. Note: on a locked RFA/KVM the token is still optional — SW28 lets you replace the module instead.
Who Version B is for
For techs handling locked keyless modules. Replace the RFA outright, or swap/adapt one in — free, no per-job cost — instead of paying to copy each key. Key copying stays optional.
What each key costs on this version
| Job | 1 key | 2 keys |
|---|---|---|
| Program a new / spare key (SW36 · HW13 / HW14) | £400 | £500 |
| Copy / duplicate a key (SW34 · HW05 / HW06) | £100 | £200 |
How key prices drop as you move up — all versions
| Per-job token | PAYG | A | B | C | C+ |
|---|---|---|---|---|---|
Program a new / spare key (SW36 · HW13 / HW14)
|
£500 | £500 | £400 | included | included |
Copy / duplicate a key (SW34 · HW05 / HW06)
|
£200 | £150 | £100 | included | included |
The bigger your package, the cheaper each key — on C and C+ all key jobs are included with no tokens.
Full function list — every version compared
| Function | PAYG | A | B | C | C+ |
|---|---|---|---|---|---|
| Standard functions (built in) | |||||
| Copy key via MCU dumps (KVM / BCM) | ✓ | ✓ | ✓ | ✓ | |
| KVM / RFA key duplicator (SW34 / SW36) | token | ✓ | ✓ | ✓ | ✓ |
| Read JLR keys (PCF7953 / NCF29A) | — | ✓ | ✓ | ✓ | ✓ |
| Add / remove keys — unlocked RFA & BCM | — | ✓ | ✓ | ✓ | ✓ |
| Precoding & dealer key dump modules | — | ✓ | ✓ | ✓ | ✓ |
| Diagnostics — read + clear DTC | — | ✓ | ✓ | ✓ | ✓ |
| Alarm OFF via OBD & CAN wires | — | ✓ | ✓ | ✓ | ✓ |
| CCF UWB/PEPS on/off — 1-click (unlocked BCM) | — | ✓ | ✓ | ✓ | ✓ |
| Flashing & programming | |||||
| CCF editor + as-built flashing (SW24) | — | — | ✓ | ✓ | ✓ |
| SDD module VIN programming (new/used parts) (SW21) | — | — | ✓ | ✓ | ✓ |
| Pathfinder module VIN programming (2017–2021) (SW22) | — | — | ✓ | ✓ | ✓ |
| New RFA programming (unlocked BCM) (SW27) | — | — | ✓ | ✓ | ✓ |
| DOIP programming & diagnostics via ENET (2022+) (SW37) | — | — | ✓ | ✓ | ✓ |
| Downgrade RFA module software via OBD (SW38) | — | — | ✓ | ✓ | ✓ |
| Locked-module & UWB (advanced) | |||||
| Replace RFA on a LOCKED keyless module — swap the RFA alone, no BCM change, no Service Mode (SW28 · L8B2/R8E2/M8E2 · 2017–2024+) | — | — | ✓ | ✓ | ✓ |
| Add OEM UWB/PEPS keys with LOCKED RFA (EVA2) (SW30) | — | ✓ | ✓ | ✓ | ✓ |
| CCF UWB/PEPS on/off — locked BCM (SW26) | — | — | — | ✓ | ✓ |
| NCF29A1 key duplicator when RFA is locked (SW35) | — | — | — | ✓ | ✓ |
| Unlimited KVM / RFA duplicator (no tokens) (SW36) | — | — | — | ✓ | ✓ |
| Alarm OFF via RFA adapter (HW03-C) (SW33) | — | — | — | ✓ | ✓ |
| Top-tier (C+ only) | |||||
| RFA EVA2 unlock — L8B2 / M8E2 / R8E2 (2021+) (SW40) | — | — | — | — | ✓ |
| IPC/IPCB make-virgin, adaptation & programming (SW39) | — | — | — | — | ✓ |
| Lifetime software updates included | — | — | — | — | ✓ |
✓ included · token available per job on PAYG · — not on this version.
SW30 — adding OEM UWB/PEPS keys on a locked EVA2 system (locked RFA, 2021–2025+) works on Versions A, B, C and C+. On a locked EVA2 system keys are added over OBD when either the TCU is in Service Mode, or 2 keys are already programmed to the car (the software sees them, then adds the next key over OBD).
Single-function licences (add any one, any time)
On Version B, new-key and key-copy jobs run on low per-job tokens (see the key-cost table above) — there is no separate per-function licence to buy. When you want unlimited key duplication with no tokens, step up to Version C.
What's in the box

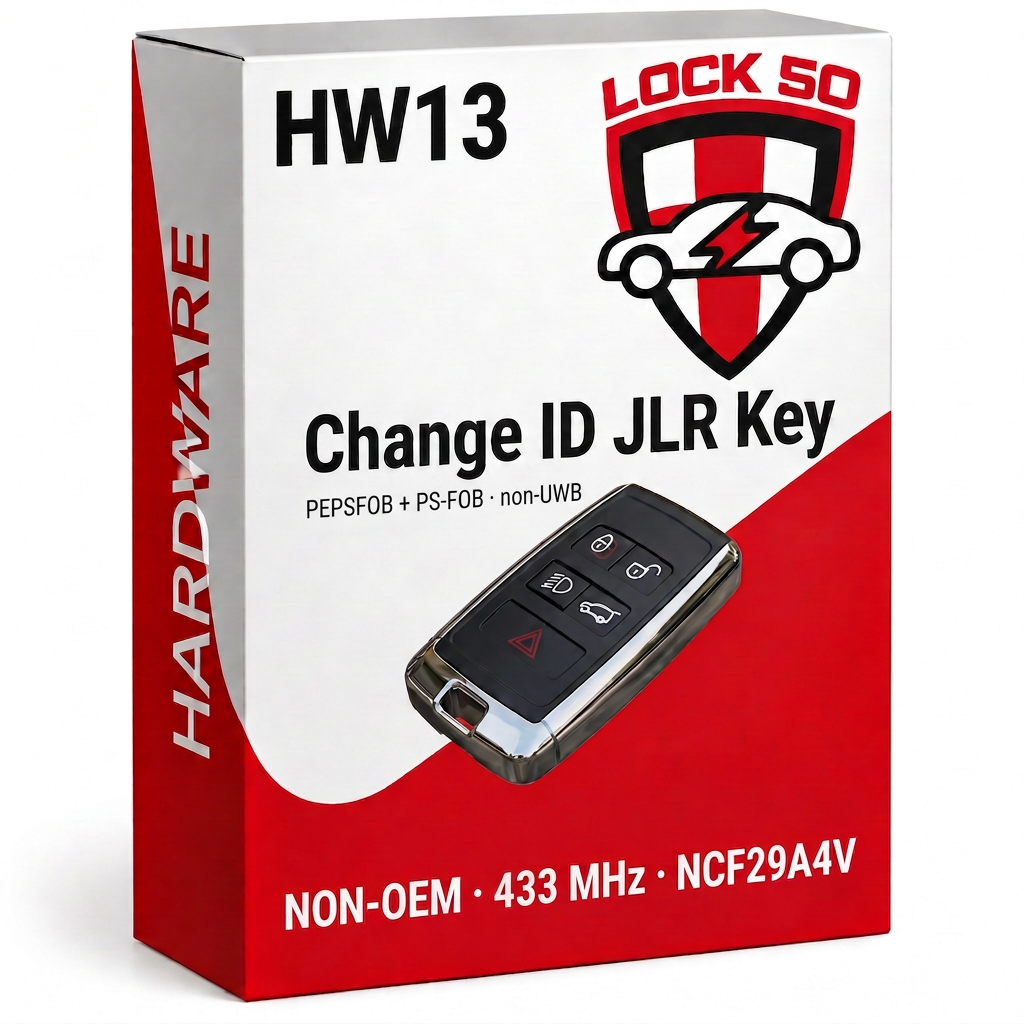

Keys included: 2 FREE keys included — for each key you choose HW13 (433MHz) or HW14 (315MHz) Cloneable Change-ID. Extra keys via token (SW36 £400 / 1 key) — cheaper than A or PAYG.
All 5 cables & adapters ship with every kit:
HW03-A — SPC Solder-Free Adapter
Read/write MCU chips · alarm-off
Read/write MCU chips · alarm-off
HW03-B — CAN Adapter
All Keys Lost via CAN wires
All Keys Lost via CAN wires
HW03-C — RFA / Key Duplicator Adapter
Locked RFA & PEPS key duplication
Locked RFA & PEPS key duplication
HW03-D — OBD Dual CAN Cable
2010–2022 vehicles
2010–2022 vehicles
HW03-E — OBD DOIP Cable
2021–2024+ EVA2 vehicles
2021–2024+ EVA2 vehicles
Software modules included with this kit
Version B ships with every module below built in — no per-job tokens for these functions.
| Module | What it does |
|---|---|
| SW01 | Read JLR key PCF7953 — part, frequency, position, locked status |
| SW02 | Read JLR key NCF29A — part, frequency, position, locked, PEPS/UWB status |
| SW03 | Precoding dealer key dump — FK72 / HPLA / DPLA (MC9S12XEP100) |
| SW04 | JPLA-19H440 (DE/BE/CE/AE) key emulation (SPC560B60L3) 2017–2025+ |
| SW05 | K8D2-19H440 (BB/BC/AB/AC) key emulation (SPC560B60L3) 2017–2024+ |
| SW06 | Jaguar J9C3-19H440 (DF/BF) key emulation (SPC560B60L3) 2017–2024+ |
| SW07 | M9R3-19H440 (BD/BE) key emulation (SPC560B60L3) 2017–2025+ |
| SW08 | Jaguar BCM ST95128 dump for JPLA L8B2/M8E2/R8E2 key emulation 2017–2025+ |
| SW09 | Copy key via MCU dumps (KVM) 2010–2021 |
| SW10 | Copy unlocked JLR PCF7953 key-to-key without OBD |
| SW11 | JLR 2010–2020 key unlocking / renewing without opening keys (PCF7953) |
| SW13 | Add JLR NCF29A1 keys to RFA MCU dump 2017–2025+ |
| SW14 | Add NCF29A1 PEPS/UWB or PSFOB non-UWB used locked keys to RFA MCU dump |
| SW15 | Defender DH12 ALM spare / all-keys-lost via copy to Lock50 keys (MCU dump) |
| SW20 | JLR diagnostics — read + clear DTC |
| SW21 | SDD module VIN programming — new or used parts |
| SW22 | Pathfinder module VIN programming 2017–2021 — new or used parts |
| SW25 | CCF UWB/PEPS on/off 1-click, unlocked RFA 2017–2024+ |
| SW29 | Add / remove keys, unlocked RFA & unlocked BCM 2010–2024+ |
| SW31 | Alarm OFF via OBD 2010–2015 |
| SW32 | Alarm OFF via OBD + CAN wires adapter HW03-B 2010–2020+ |
| SW37 | DOIP programming & diagnostics via ENET 2022–2026 |
| SW38 | Downgrade RFA module software via OBD when high |
23 modules included with this kit.
Free bonus
HW03-CB KVM/RFA 2-in-1 Test Cable — included free
The new HW03-CB bench cable with both KVM & RFA connector adapters and a 12V rechargeable battery pack — so 12V comes from the battery, not the wall. Included free with this kit.
Upgrade path
| Upgrade to | What it unlocks | ex-VAT | inc. VAT | Or work it off in tokens |
|---|---|---|---|---|
| HW04-C → order | Locked-RFA UWB keys; KVM/RFA duplicator | £6,000 | £7,200 | 15 × SW36 key tokens (£400 each) — credited 100% toward this upgrade |
| HW04-C+ → order | Everything in C; RFA EVA2 unlock; IPC make-virgin; Lifetime updates | £11,000 | £13,200 | ≈ 28 × SW36 key tokens (£400 each) — credited 100% toward this upgrade |
Every SW36 key token you buy is credited 100% (£ for £) towards your next tier — so you can work your way up job by job instead of paying the upgrade in one go.
How upgrades & tokens work
- Every HW04 is the same hardware — your version is a licence unlocked in software, remotely.
- On Pay As You Use the tool is locked: each job is unlocked with a paid licence (a “token”).
- The higher your package, the cheaper every per-job licence becomes.
- To move up a tier you buy the upgrade licence below — no need to send the tool back.
- What you already paid on PAYG / per-job licences is credited towards your upgrade.
Software renewals & what they cost
Your first 12 months of software updates are included with every paid tier. After that, updates renew at the rate below — or take a one-off 24-month or lifetime plan and never think about it again. Renewals only cover new software updates; your tool keeps working on its current version either way.
| Tier | First 12 months | Yearly after | 24-month plan | Lifetime plan |
|---|---|---|---|---|
| HW04-PAYG | Included | No subscription — pay a licence per job | — | — |
| HW04-A | Free | £500 / yr | £900 | £1,500 |
| HW04-B (this tier) | Free | £750 / yr | £1,300 | £2,250 |
| HW04-C | Free | £1,000 / yr | £1,800 | £3,000 |
| HW04-C+ | Free | No yearly fee, ever | Included | Included |
C+ has no yearly fees ever and includes lifetime updates. All renewal prices ex-VAT.
All prices shown ex-VAT. UK orders pay 20% VAT on top — this kit is £5,000 ex-VAT / £6,000 inc. 20% UK VAT. Use the Add to Cart button above to order.
Original Key:
Orignal
KVM Key less Vehicle Module
Supported Software for KVM/RFA Replacement Programming:
- Lock50 HW04
Immobiliser systems
HW03B Adapter Kit Options:
HW03B Full Kit
Lock50 HW01 & HW04 JLR Key tool:
- SW01 - FREE with Lock50 HW01 & HW04 Read JLR Key PCF7953 Part Frequency Position Locked Status info
- SW02 - FREE with Lock50 HW01 & HW04 Read JLR Key NCF29A Part Frequency Position Locked PEPS UWB Status info
- SW 03 - FREE with Lock50 HW01 & HW04 Jaguar Land Rover Precoding Dealer Key Dump Tool FK72 HPLA DPLA for MCU MC9S12XEP100
- SW 04 - FREE with Lock50 HW01 & HW04 Land Rover JPLA-19H440-DE BE CE AE Module for MCU SPC560B60L3 Key Emulation 2017-2025+
- SW 05 - FREE with Lock50 HW01 & HW04 K8D2-19H440-BB K8D2-19H440-BC K8D2-19H440-AB K8D2-19H440-AC Modules for MCU SPC560B60L3 Key Emulation 2017-2024+
- SW 06 - FREE with Lock50 HW01 & HW04 Jaguar J9C3-19H440-DF J9C3-19H440-BF Module for MCU SPC560B60L3 Key Emulation 2017-2024+
- SW 07 - FREE with Lock50 HW01 & HW04 Jaguar Land Rover M9R3-19H440-BD BE Module for MCU SPC560B60L3 Key Emulation 2017-2025+
- SW08 - Jaguar Land Rover Jaguar BCM ST 95128 Dump for JPLA L8B2 M8E2 R8E2 Key Emulation 2017-2025+
- SW09 - FREE with Lock50 HW01 & HW04 Module Copy Key via MCU Dumps for KVM 2010 to 2021
- SW10 - FREE with Lock50 HW01 & HW04 Module Copy Unlocked JLR PCF7953 Key to Key without OBD
- SW 11 - FREE with Lock50 HW01 & HW04 JLR 2010 to 2020 Key Unlocking / Renewing Without opening Keys PCF7953
- SW12 - Lock50 HW01 & HW04 Module Copy Clients JLR PCF7953 Key to key Direct on to OEM Keys.
- SW13 - FREE with Lock50 HW01 & HW04 Module Module Add JLR NCF29A1 keys to RFA MCU Dump 2017-2025+
- SW14 - FREE with Lock50 HW01& HW04 Module Add JLR NCF29A1 PEPS UWB or PSFOB NON UWB Used Locked Keys to RFA MCU Dump
- SW15 - FREE with Lock50 HW01 & HW04 JLR Defender DH12 ALM ECU Module Spare or All Lost Keys via Copy to Lock50 Keys via MCU Dump
Lock50 HW04 Licence Renewal Cost:
HW04-B 12 Month
JLR Models 2010 to 2025+
Defender L316:
- 2016
- 2015
- 2014
- 2013
- 2012
- 2011
- 2010
- 2009
- 2008
- 2007
Defender Smart Key 2 Button ALM Part Numbers Can Key Copy from Module Via Mcu Dump:
- DH1215K600AB
- DH12-15K600-AB
- DH1215K600BC
- DH12-15K600-BC
Jaguar E-Pace X540:
- Jaguar E-Pace 2025
- Jaguar E-Pace 2024
- Jaguar E-Pace 2023
- Jaguar E-Pace 2022
- Jaguar E-Pace 2021
- Jaguar E-Pace 2020
- Jaguar E-Pace 2019
- Jaguar E-Pace 2018
Jaguar F-Pace X761:
- Jaguar E-Pace 2026
- Jaguar E-Pace 2025
- Jaguar F-Pace 2024
- Jaguar F-Pace 2023
- Jaguar F-Pace 2022
- Jaguar F-Pace 2021
- Jaguar F-Pace 2020
- Jaguar F-Pace 2019
- Jaguar F-Pace 2018
- Jaguar F-Pace 2017
Jaguar F-Type X152:
- Jaguar F-Type 2024
- Jaguar F-Type 2023
- Jaguar F-Type 2022
- Jaguar F-Type 2021
- Jaguar F-Type 2020
- Jaguar F-Type 2019
- Jaguar F-Type 2018
- Jaguar F-Type 2017
- Jaguar F-Type 2016
Jaguar I-Pace X590:
- Jaguar I-Pace 2025
- Jaguar I-Pace 2024
- Jaguar I-Pace 2023
- Jaguar I-Pace 2022
- Jaguar I-Pace 2021
- Jaguar I-Pace 2020
- Jaguar I-Pace 2019
Jaguar XE X760:
- Jaguar XE 2024
- Jaguar XE 2023
- Jaguar XE 2022
- Jaguar XE 2021
- Jaguar XE 2020
- Jaguar XE 2019
- Jaguar XE 2018
- Jaguar XE 2017
- Jaguar XE 2016
Jaguar XF X250/X260:
- Jaguar XF 2026
- Jaguar XF 2025
- Jaguar XF 2024
- Jaguar XF 2023
- Jaguar XF 2022
- Jaguar XF 2021
- Jaguar XF 2020
- Jaguar XF 2019
- Jaguar XF 2018
- Jaguar XF 2017
Jaguar XJ X351:
- Jaguar XJ 2019
- Jaguar XJ 2018
- Jaguar XJ 2017
- Jaguar XJ 2016
New Range Rover L460:
- New Range Rover 2026
- New Range Rover 2025
- New Range Rover 2024
- New Range Rover 2023
- New Range Rover 2022
Range Rover L406:
- Range Rover 2022
- Range Rover 2021
- Range Rover 2020
- Range Rover 2019
- Range Rover 2018
- Range Rover 2017
- Range Rover 2016
- Range Rover 2015
- Range Rover 2014
- Range Rover 2013
New Range Rover Sport L461:
- New Range Rover Sport 2026
- New Range Rover Sport 2025
- New Range Rover Sport 2024
- New Range Rover Sport 2023
Range Rover Sport L494:
- Range Rover Sport 2022
- Range Rover Sport 2021
- Range Rover Sport 2020
- Range Rover Sport 2019
- Range Rover Sport 2018
- Range Rover Sport 2017
- Range Rover Sport 2016
Range Rover Velar L560:
- Range Rover Velar 2026
- Range Rover Velar 2025
- Range Rover Velar 2024
- Range Rover Velar 2023
- Range Rover Velar 2022
- Range Rover Velar 2021
- Range Rover Velar 2020
- Range Rover Velar 2019
- Range Rover Velar 2018
Range Rover Evouqe L538:
- 2018 Range Rover Evouqe L538
- 2017 Range Rover Evouqe L538
- 2016 Range Rover Evouqe L538
- 2015 Range Rover Evouqe L538
- 2014 Range Rover Evouqe L538
- 2013 Range Rover Evouqe L538
- 2012 Range Rover Evouqe L538
- 2011 Range Rover Evouqe L538
New Range Rover Evoque L560:
- New Range Rover Evoque 2026
- New Range Rover Evoque 2025
- New Range Rover Evoque 2024
- New Range Rover Evoque 2023
- New Range Rover Evoque 2022
- New Range Rover Evoque 2021
- New Range Rover Evoque 2020
Land Rover Defender L633:
- Land Rover Defender 2026
- Land Rover Defender 2025
- Land Rover Defender 2024
- Land Rover Defender 2023
- Land Rover Defender 2022
- Land Rover Defender 2021
Land Rover Discovery Sport L560:
- Land Rover Discovery Sport 2025
- Land Rover Discovery Sport 2024
- Land Rover Discovery Sport 2023
- Land Rover Discovery Sport 2022
- Land Rover Discovery Sport 2021
- Land Rover Discovery Sport 2020
- Land Rover Discovery Sport 2019
- Land Rover Discovery Sport 2018
- Land Rover Discovery Sport 2017
- Land Rover Discovery Sport 2015
- Land Rover Discovery Sport 2016
Land Rover Discovery L319/L462:
- Land Rover Discovery 2024
- Land Rover Discovery 2023
- Land Rover Discovery 2022
- Land Rover Discovery 2021
- Land Rover Discovery 2020
- Land Rover Discovery 2019
- Land Rover Discovery 2018
- Land Rover Discovery 2017
JLR Tools
