HW03-B — CAN-Wires Adapter Kit (Alarm OFF • Key Copy • EVA2 RFA Unlock)
All Keys Lost PEPS • connects to the CAN wires in the car • no RFA removal • runs on the Lock50 HW04
⚡ Alarm OFF in 1 clickNo need to remove the RFACAN-wires key copyNew V2 design • free with HW04-A/B/C

The HW03-B connects a Lock50 HW04 OBD tool straight to the CAN wires in the car so you can work an all keys lost PEPS job without removing the RFA. Plug the adapter onto the CAN wires, connect your HW04 and the tool does the rest — the RFA stays in the car. It does three jobs: CAN-wires alarm OFF (2010 to 2020), CAN-wires key copy (KVM 2010 to 2024, RFA 2017 to 2020, locked or unlocked), and RFA unlock through the door-module CAN wires on EVA2 cars (2021 to 2025).

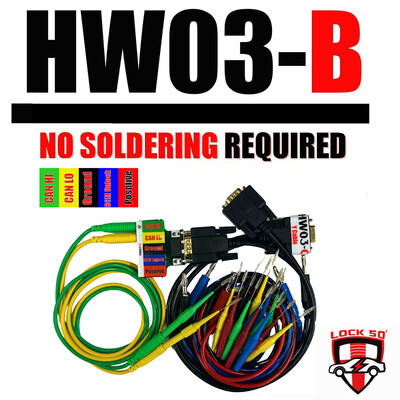

Lock50 HW03-B CAN wires adapter kit for Land Rover Jaguar all keys lost PEPS alarm off and key copy
HW03-B CAN-wires adapter kit — connects the HW04 to the car CAN wires

Three jobs, one CAN-wires adapter

Job What the HW03-B does Which HW04 tier
1. CAN-wires Alarm OFF Connect to the car CAN wires and turn the alarm off in 1 click — no need to remove the RFA. Land Rover & Jaguar 2010 to 2020. All HW04 tiers — A to C+ can do this. Free and included with HW04-A / HW04-B / HW04-C.
2. CAN-wires Key Copy Copy / add a key over the CAN wires with the adapter and your HW04 — no RFA removal. KVM 2010 to 2024 (locked or unlocked) and RFA 2017 to 2020 (locked or unlocked). HW04-C and HW04-C+ only. Other HW04 tiers need a token to run the key copy.
3. RFA Unlock via door CAN wires Reach the CAN wires in the door modules and unlock the RFA this way — the alternative when you do not want to use the HW03-C adapter. The HW03-C is easier to use; the HW03-B route is harder to access but does the same unlock. EVA2 cars only — 2021 to 2025.

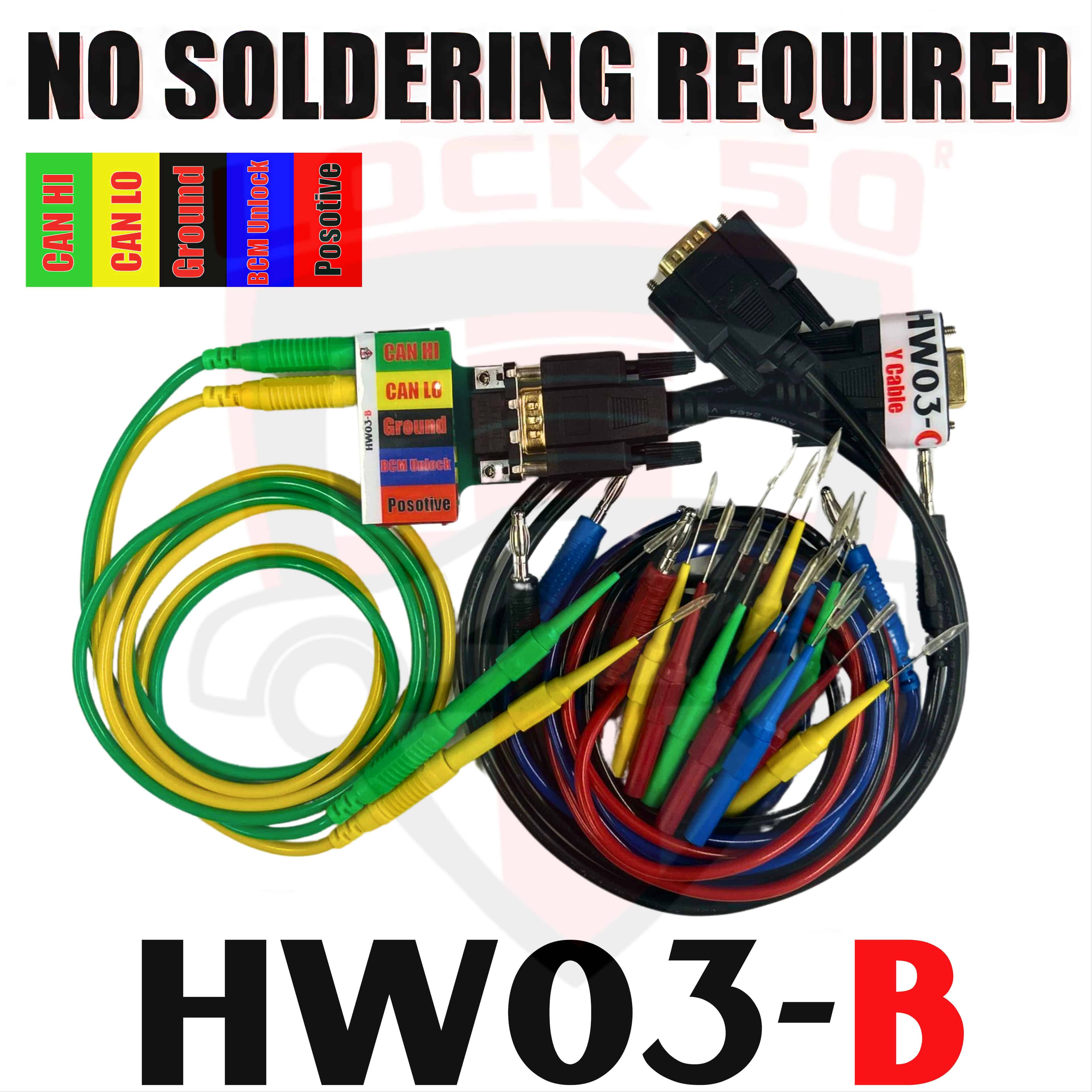

Lock50 HW03-B CAN wires adapter connected for JLR alarm off and RFA unlock
HW03-B adapter tapping the car CAN wires

How the CAN-wires job works

Step What you do
1 Connect the HW03-B adapter to the CAN wires in the car (or the door modules for the EVA2 RFA-unlock route).
2 Connect your Lock50 HW04 OBD tool to the HW03-B cables.
3 Alarm OFF: run alarm off in 1 click.
4 Key copy: copy / add a key over the CAN wires onto any Lock50 emulator key — see the key cards below.
5 EVA2 RFA unlock: reach the door-module CAN wires and unlock the RFA that way with SW40 (unlock EVA2 RFA — L8B2 / M8E2 / R8E2, 2021+) when you are not using the easier HW03-C adapter.

What's in the kit

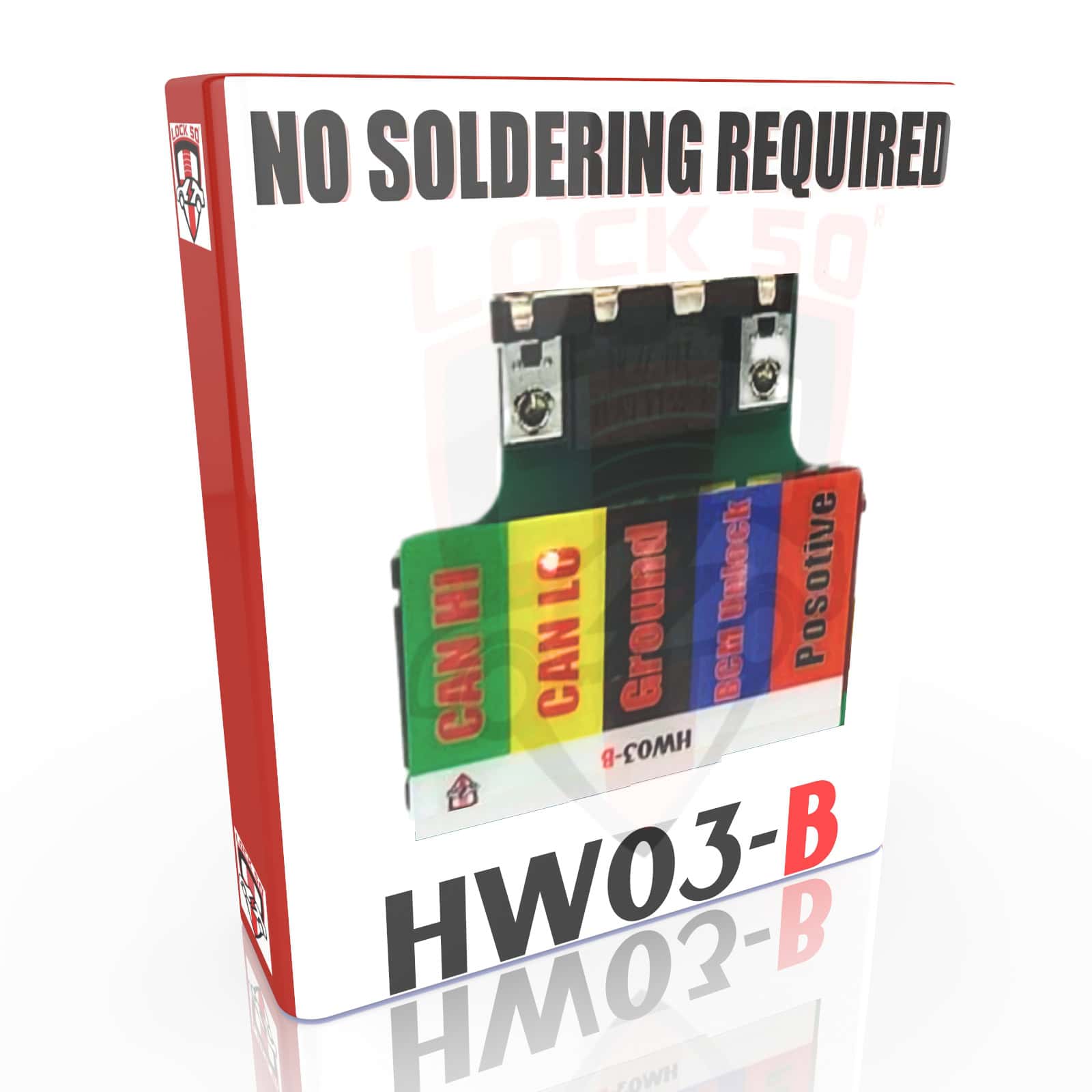

  • HW03-B CAN-wires adapter — new V2 design.

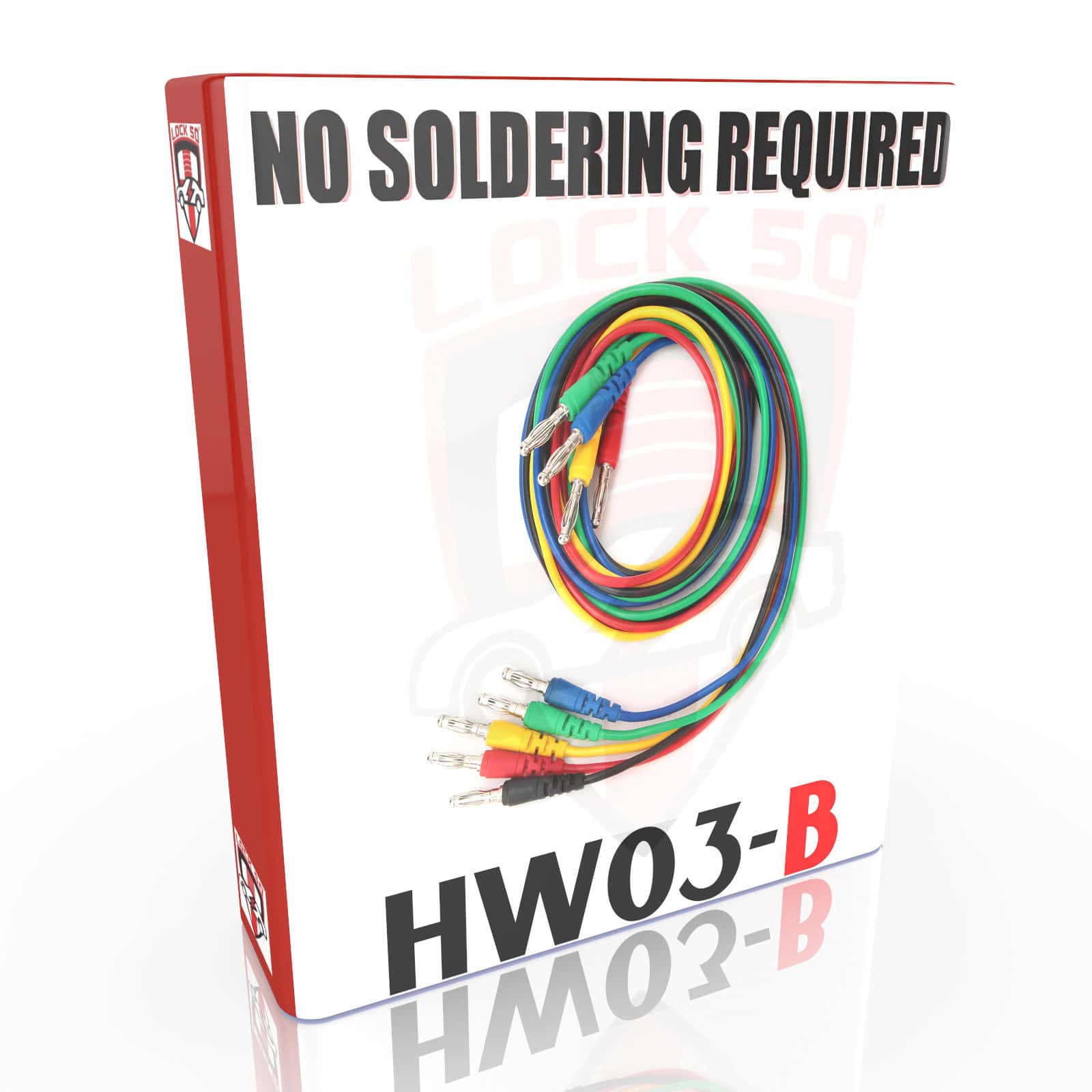

  • CAN / LIN connection cables to tap the car and door-module CAN wires.

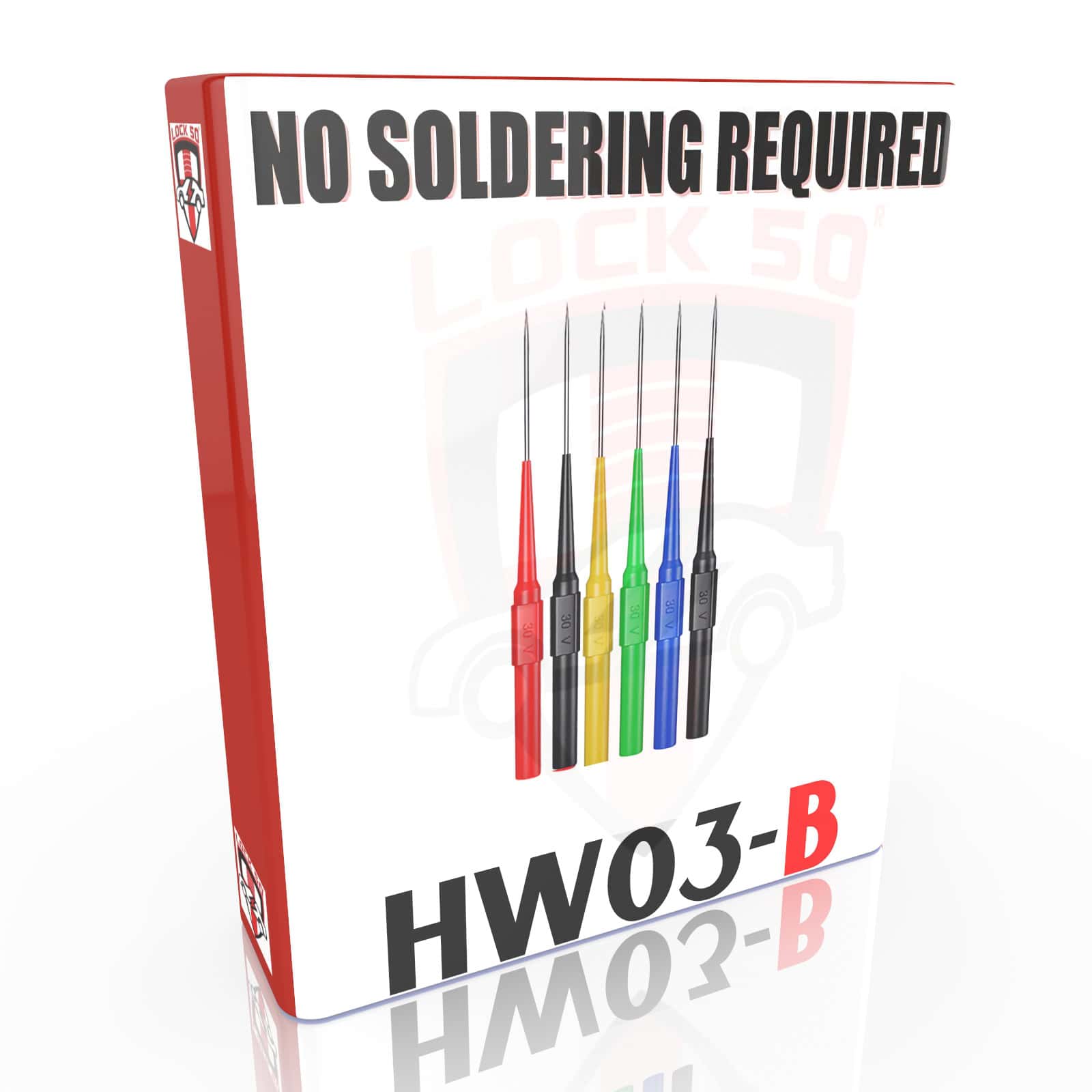

  • Probe needles for a clean connection without cutting.
  • Runs with the Lock50 HW04 OBD tool — free and included when you order HW04-A, HW04-B or HW04-C.

Tools you need with the HW03-B

Tool Why you need it
HW04 (A to C+) The OBD tool that drives the job. Alarm OFF on all tiers A to C+. Key copy on HW04-C / C+; other tiers need a token. See the HW04 alarm-off module.
Keys Lock50 emulator keys the copy is written onto — see the key cards below.

Make keys with the Lock50 emulator keys

The CAN-wires key copy writes onto any Lock50 emulator key. Copy over the CAN wires with your HW04. Pick the key you need below:

Older PCF7953 keys — HW05 to HW10:

Change-ID NCF29A4V PEPS keys — HW13 / HW14:

The HW04 OBD software for these jobs

Every HW03-B job runs over OBD with your HW04 — alarm off and key copy over the CAN wires, plus the EVA2 RFA unlock. Click any title to open its software page in a new tab.

Software What it does
SW20 Lock50 SW20 JLR HW04 OBD software Base HW04 OBD tool — read & clear DTCs and live data, JLR 2006 to 2024. The OBD layer the HW03-B jobs run on.
SW32 Lock50 SW32 JLR HW04 OBD software Alarm OFF — over OBD directly for 2010 to 2015. For 2015+ run the same SW through the HW03-B CAN wires adapter, or the same SW with the HW03-C connected instead. 1 click, no RFA removal.
SW34 Lock50 SW34 JLR HW04 OBD software Key copy over OBD — PCF7953 key duplicator when the KVM is locked. 2010 to 2024, older HW05 / HW06 keys.
SW35 Lock50 SW35 JLR HW04 OBD software Key copy over OBD — NCF29A1 (NCF29A4V) key duplicator when the RFA is locked. 2017 to 2020 PEPS keys.
SW40 Lock50 SW40 JLR HW04 OBD software Unlock the EVA2 RFA over OBD — L8B2 / M8E2 / R8E2 BCM types, cars 2021+.

CAN-wires demo videos

Notes

  • Connects to the CAN wires in the car — no need to remove the RFA, it stays in the car.
  • The RFA / KVM must be present. If the RFA is missing, plug in any used or new RFA and connect it with the HW03-C to arm off — only then is it possible.
  • Alarm OFF (2010 to 2020): all HW04 tiers, A to C+. Free and included with HW04-A / HW04-B / HW04-C.
  • Key copy — HW04-C / C+ only (other HW04 tiers need a token): KVM 2010 to 2024 and RFA 2017 to 2020, locked or unlocked.
  • RFA unlock via the door-module CAN wires is EVA2 cars only, 2021 to 2025 — the harder-access alternative to the easier HW03-C adapter.
