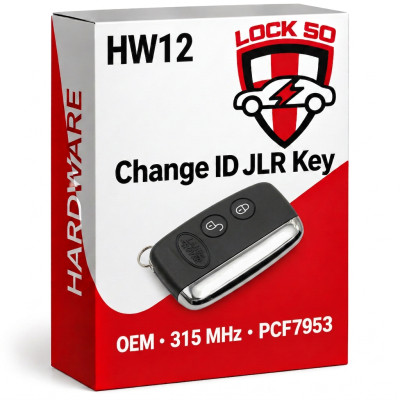

Lock50 HW12 JLR Change-ID Key — 315 MHz
The Lock50 HW12 is an OEM-style 2-button remote key for the Land Rover Defender, running on PCF7953P (Hitag Pro / ID49) at 315 MHz — part reference DH12-15K601-BA. It has keyless start in the car; entry is by pressing the button on the key (remote lock / unlock) — there is no passive keyless entry.
Every Lock50 key is a Change-ID key: it can be written up to 10 times to copy a key. Once the copy is done you simply hand the finished key to your customer.
Key specification
Model / Change IDHW12
Frequency315 MHz (USA / export)
TransponderPCF7953P (Hitag Pro / ID49)
Buttons2-button
Key typeKeyless start; button-press entry (RKE)
GradeOEM
FitsLand Rover Defender
Re-writableUp to 10 copies per key
Functions
✓Remote Keyless Entry (RKE) — button press lock / unlock
✓Keyless start in the car
✓Emergency start (KVM back-up start path)
No passive keyless entry — you press the button on the key to lock / unlock. Once inside, the car has keyless start.
How to copy & use this key
1
Learn via dealer software (SDD)
The standard dealer route — learn the key through SDD / dealer software over OBD. When prompted, press a button on the HW12 to learn it as a spare key to the vehicle.
2
Key-to-key copy
Best when you already have a working key. Read the existing key on the Lock50 HW01 or HW04 and copy it straight onto the HW12 in seconds — no vehicle, no tokens.
3
Dump-to-key copy
When you have no working key: write from a KVM dump to the HW12 with the Lock50 HW01 or HW04. Defender KVM part refs: DH1215K600AB / DH1215K600BC (2-plug).
4
Bench copy with HW03-CB — no opening
Tools required
To write data to this key you need the Lock50 HW01 JLR Key Tool or the Lock50 HW04 OBD Tool. Bench copy without opening the module uses the HW03-CB KVM/RFA 2-in-1 test cable (with the HW03-D OBD cable). These keys work on the KVM: a new key is added over OBD when the KVM is unlocked, and copied over OBD when it is locked.
OEM part numbers this key replaces
This key is the 315 MHz version (USA / export markets). It replaces the following genuine JLR OEM key part numbers — match the number printed on the original key or its FCC/IC label (FCC ID PCF7953P (Hitag Pro / ID49)):
Land Rover Defender
DH12-15K601-BB
Vehicles supported
Coverage for the 315 MHz (USA / export markets) version. Exact fit is confirmed by the original key's FCC ID / OEM part number above — always match those before ordering.
Land Rover Defender
| Model | Code | Years |
|---|---|---|
| Defender | L316 | 2007 – 2016 |
Years and models cross-referenced against FCC ID KOBJTF10A and professional locksmith key databases. If your vehicle is not listed, send the original key photo (FCC/part number) and we will confirm.
Lock50 software functions for this key
These are the Lock50 software functions that work with this classic Defender key. They run on the HW04 tool by copying from the ALM module dump or by key unlock — there is no OBD route for these keys. Click any function to open its own page in a new tab.
On the bench / key tool (no OBD)
| Function | What it does & when you need it |
|---|---|
| SW01 | Read this key — part, frequency, key position and locked status. Always identify the key first. |
| SW15 | Emulate from dump — Defender ALM module (LR084667 / DH12-15K600-AB / -BC) copy, spare or all-keys-lost, onto Lock50 HW11 / HW12 keys. |
| SW10 | Direct key-to-key copy of an unlocked key — done in seconds. |
| SW11 | Unlock a locked key without opening it, then relearn the key. |
Advice for clients
Identify the key first with SW01. On the classic Defender the key is copied from the ALM module dump using SW15 — works for a spare or when all keys are lost. If you already have a good unlocked key, a direct SW10 key-to-key copy is the fastest route, and a locked key can be recovered with SW11 without opening it. There is no OBD add-key route for these keys.
Compare the Lock50 JLR key range (HW05 – HW12)
| Key | Freq | Transponder | Fits | Buttons | Years | Keyless |
|---|---|---|---|---|---|---|
| HW05-A | 433 MHz | PCF7953 (Hitag Pro / ID49) | Jaguar & Land Rover | 5 | 2010 – 2020 | ✓ RKE + PKE + Keyless + Emergency start |
| HW05-B | 433 MHz | NCF29A4V (Hitag Pro) | Jaguar & Land Rover | 5 | 2010 – 2020 | ✓ RKE + PKE + Keyless + Emergency start |
| HW06-A | 315 MHz | PCF7953 (Hitag Pro / ID49) | Jaguar & Land Rover | 5 | 2010 – 2020 | ✓ RKE + PKE + Keyless + Emergency start |
| HW06-B | 315 MHz | NCF29A4V (Hitag Pro) | Jaguar & Land Rover | 5 | 2010 – 2020 | ✓ RKE + PKE + Keyless + Emergency start |
| HW07 | 433 MHz | PCF7953 (Hitag Pro / ID49) | Range Rover / Land Rover | 5 | 2010 – 2020 | ✓ RKE + PKE + Keyless + Emergency start |
| HW08 | 315 MHz | PCF7953 (Hitag Pro / ID49) | Range Rover / Land Rover | 5 | 2010 – 2020 | ✓ RKE + PKE + Keyless + Emergency start |
| HW09 | 433 MHz | PCF7953 (Hitag Pro / ID49) | Jaguar | 5 | 2010 – 2020 | ✓ RKE + PKE + Keyless + Emergency start |
| HW10 | 315 MHz | PCF7953 (Hitag Pro / ID49) | Jaguar | 5 | 2010 – 2020 | ✓ RKE + PKE + Keyless + Emergency start |
| HW11 | 433 MHz | PCF7953P (Hitag Pro / ID49) | Land Rover Defender | 2 | 2007 – 2016 | ✓ RKE + Keyless + Emergency start |
| HW12 | 315 MHz | PCF7953P (Hitag Pro / ID49) | Land Rover Defender | 2 | 2007 – 2016 | ✓ RKE + Keyless + Emergency start |
Tap any key code above to open its product page.
433 MHz = UK / EU / rest-of-world · 315 MHz = USA / export markets. Choose the frequency that matches the original key.
